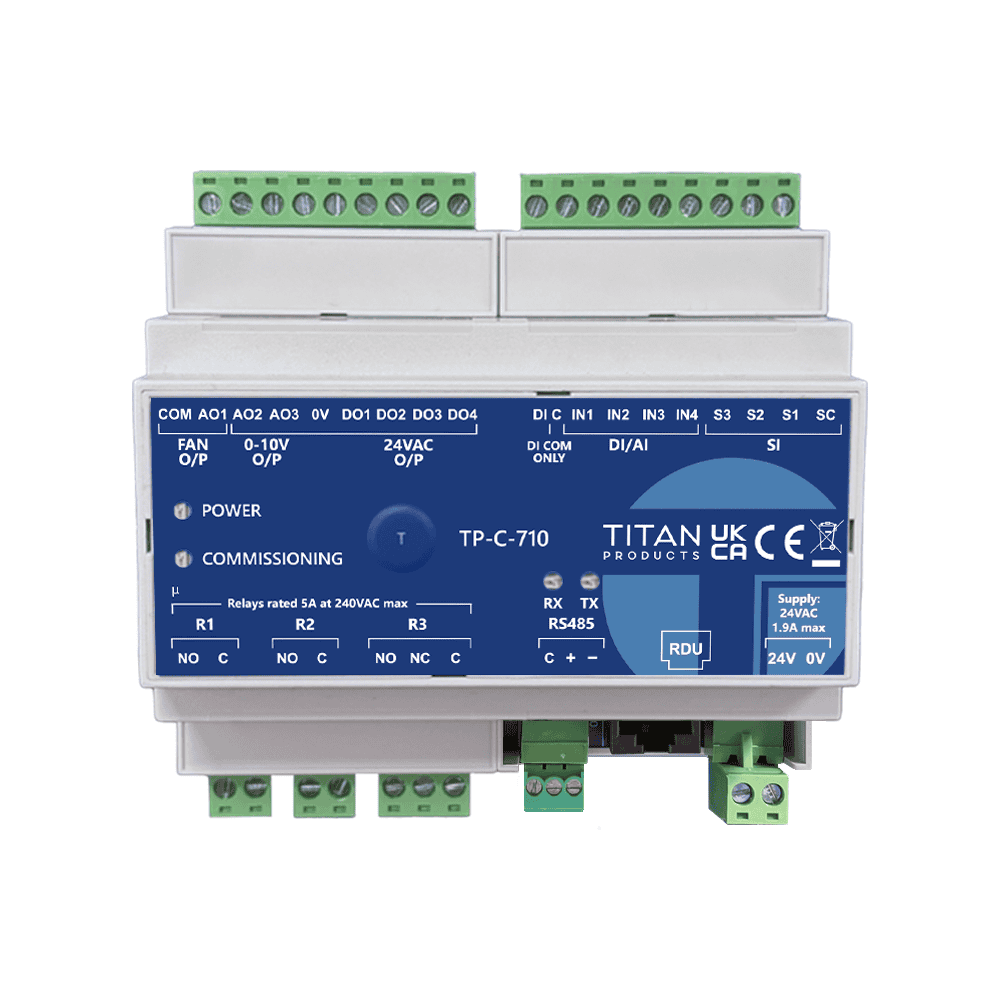

TITAN TP710 FAN COIL CONTROLLERS & ACCESSORIES

The TITAN TP-710 fan controller is a series of flexible, energy-efficient, BACnet-enabled controllers for commercial and residential fan coil unit (FCU) applications. They are designed for integration into Building Management Systems (BMS) and support a variety of heating and cooling configurations.

Key Key Features

• Application Support: The controllers manage 2-pipe and 4-pipe FCU systems, with some models (R-series) offering combined underfloor heating and secondary zone control options.
• Communication: They feature native BACnet MS/TP or BACnet/IP communications, allowing them to function as standalone devices or as part of a larger network.
• Fan Control: The units offer flexible control for fans, including 0-10V EC fan control, and specific models (IFR series) provide three interlocked relays for traditional 3-speed fan control in retrofit applications.
• I/O Options: A flexible mix of inputs and outputs accommodates various actuator types (0-10V, 24VAC on/off, raise/lower, PWM) for heating and cooling control.
• Commissioning: The entire range is commissioned using the proprietary Titan ToolBox PC software, which streamlines setup, configuration, and diagnostics.

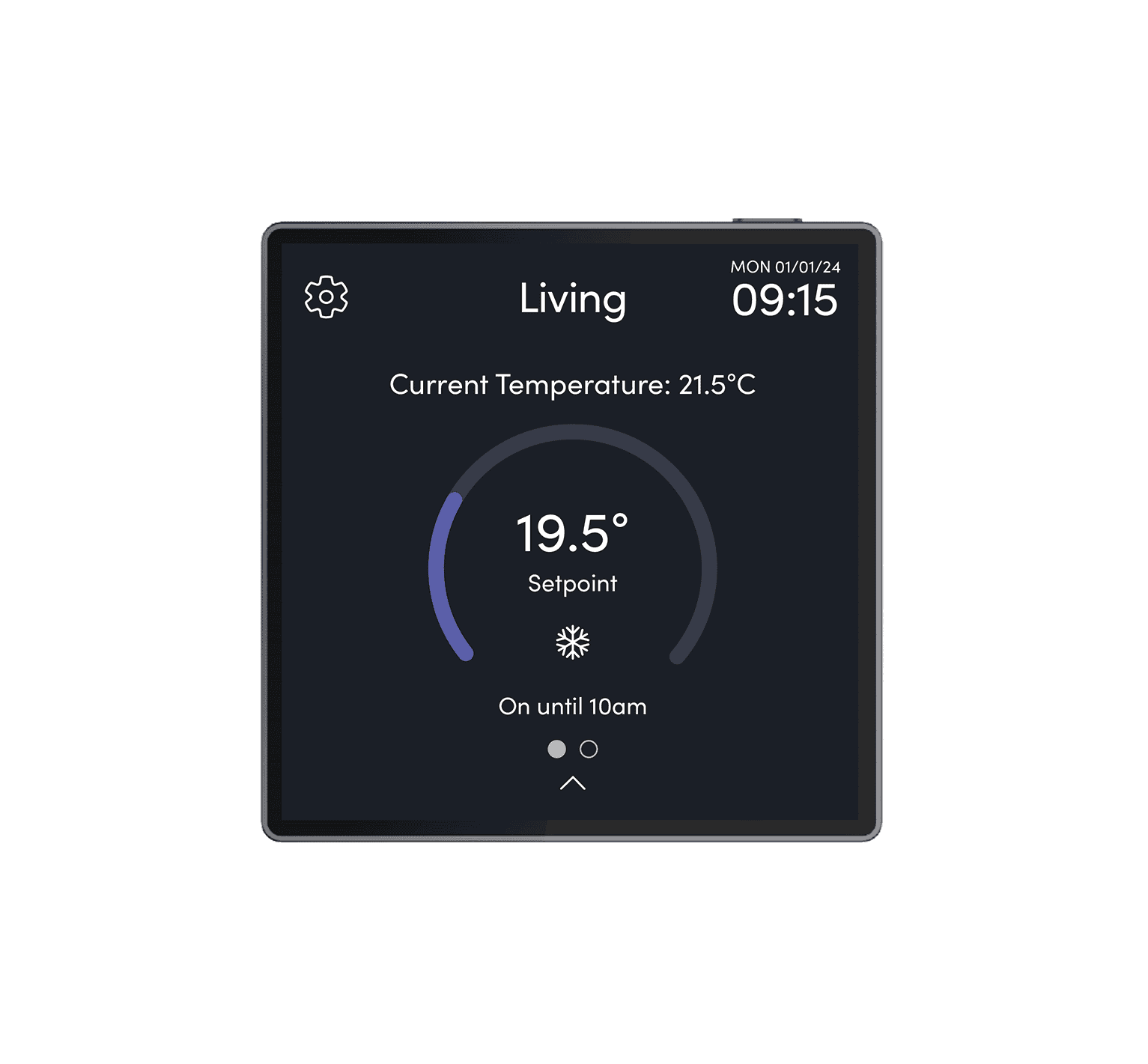

• User Interfaces: The TP-710 series is compatible with a range of wired user interfaces, including 4" and 7" touch screens and rotary dials, as well as a companion mobile app for remote control.
