ROOM/SPACE TEMPERATURE SENSORS
A direct output temperature sensor used for measuring air temperature in indoor spaces. Compatible with the below listed manufacturers equipment.
PROTECTION: IP 20
TYPE: NTC THERMISTOR
HOUSING: MATERIAL ABS
DIMENSIONS: 84mm(H) x 84mm (W) x 24mm (D)
ACCURACY: +0.2 DEG C
| Part Number | Compatibilty | Data Sheets |
|---|---|---|

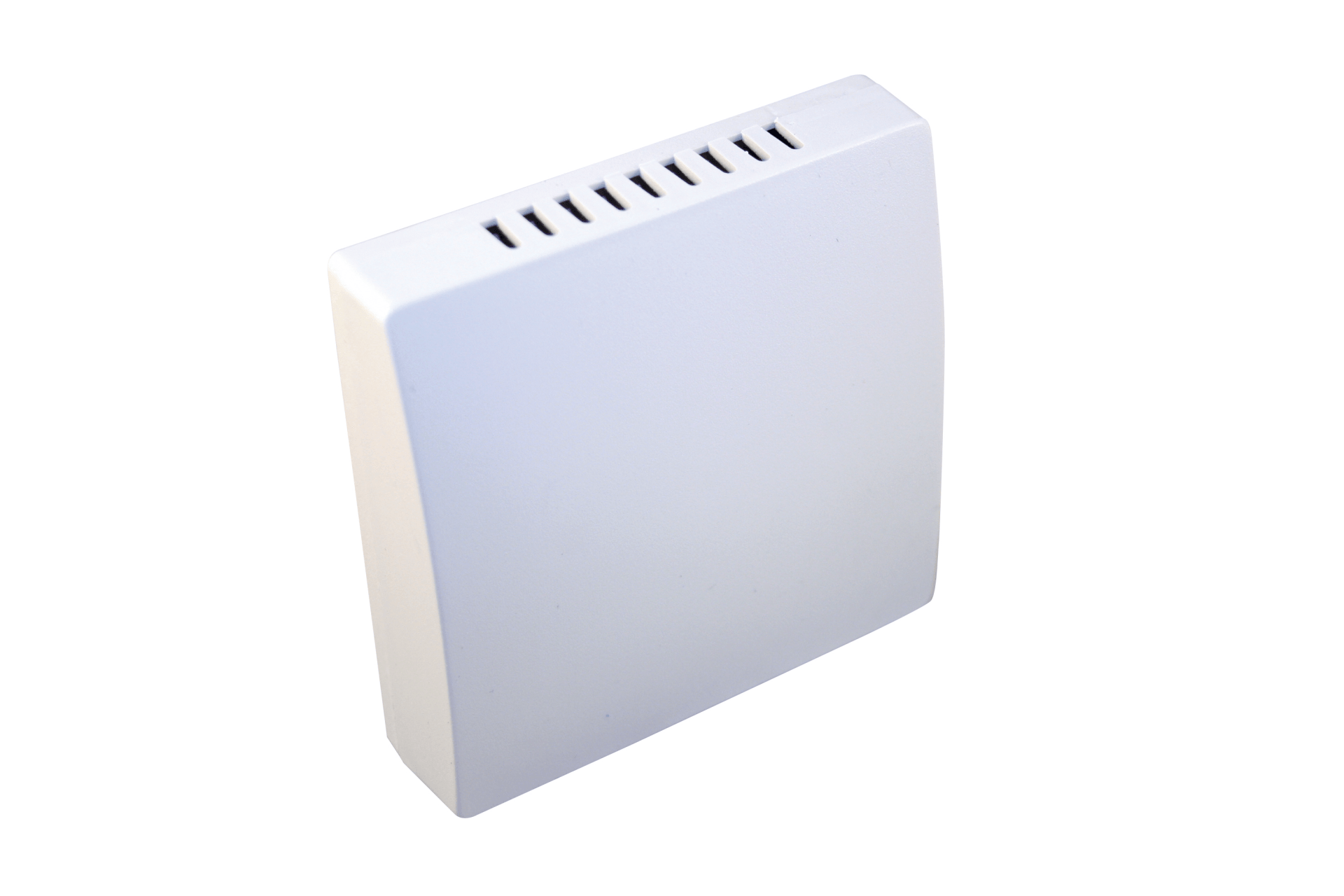

| TR1 | TREND/HONEYWELL/THORN /NEW CYLON SYSTEMS 10K3A1 | Download |
| AX-TE-PT | 10K3A1 BRUSHED S/S PLATE SENSOR | Download |
| SR | SATCHWELL DRT 10K3A1/A | Download |
| CR | CYLON PT 1000 | Download |
| AR | ANDOVER / YORK UP TO 40˚C 10K4A1 | Download |
| ALR | ALLERTON 3K3A1 | Download |
| DR | DRAYTON 30K6A1 | Download |
| TAC-R | TAC 1K87A1 | |
| HR | HONEYWELL 20K6A1 | Download |
| TE-RN1K | SIEMENS N1 1000 | Download |

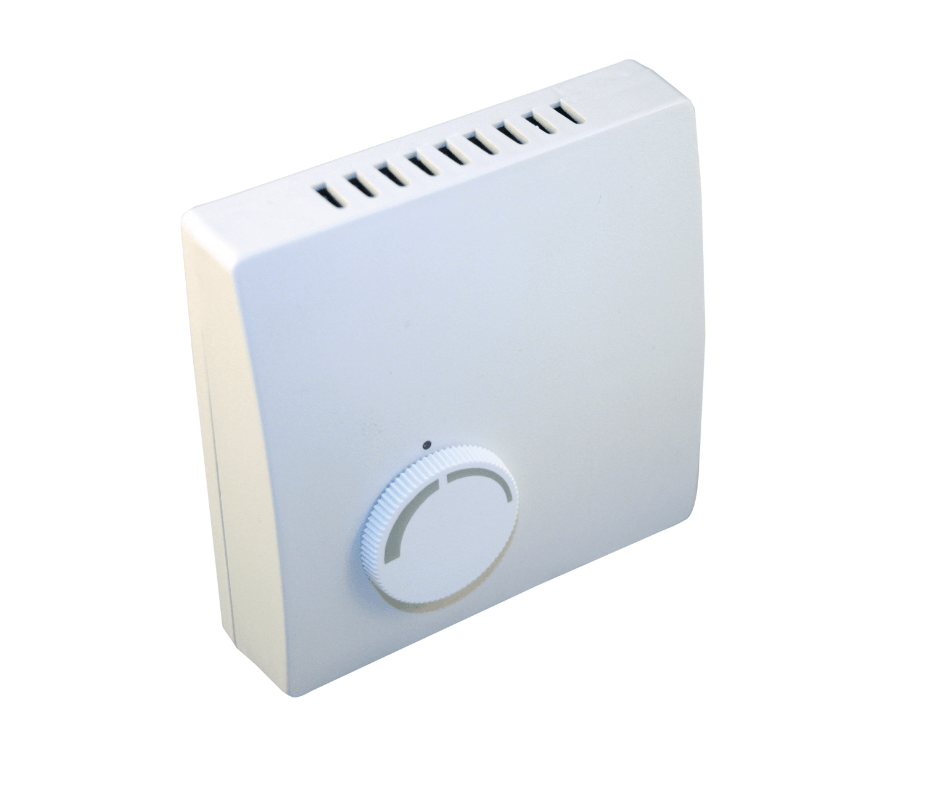

| TR1/SP | ROOM SENSOR WITH SETPOINT ADJ 10K3A1 | Download |
| SENSOR-GUARD | FOR ALL ROOM SENSORS |
ALL BMS SENSORS, CUSTOMERS LABELS AVAILABLE ON REQUEST, CONTACT HEAT & COMBUSTION FOR DETAILS
