REFRIGERENT LEAK DETECTORS
Flamefast, S&S Northern and BAPI Refrigerant Leak Detectors.
Flamefast sensors use infrared technology to accurately detect a wide range of refrigerants, such as R410a, R134a, R32, and newer ones like R1234yf. They are designed to provide clear, localized warnings and can be integrated into larger safety systems.

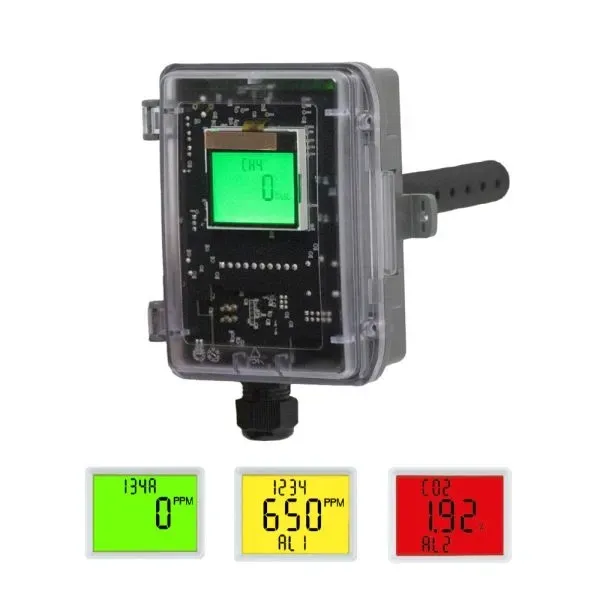

S&S Northern RSVR Refrigerant Gen sensors available for methane & R400 blends (ie) R1234YF/ R134A/ R32/ R404A/ RV07C/ R410A/ R454A/ R454B/ R454C/ R455A and others on request. Available in 24/230V, ModBus and BACnet versions
BAPI Standard unit senses over 100 different refrigerants and has automatic temperature compensation for increased accuracy
Flamefast Sensors BACNET 0-10 & Relay
S&S Northern Merlin RSVR Range
| Part Number | Description | Data Sheet |
|---|---|---|
| RSVR410A | 24V/230V Refrigerant R410A Detector - Optional LED | Datasheet |
| RSVR410A-MOD | 24V/230V Refrigerant R410A Detector - Optional LED - MODBUS (Suitable for use with the Merlin GDP2X & Merlin GDPX+) | Datasheet |
| RSVR410A-BAC | 24V/230V Refrigerant R410A Detector - Optional LED - BACNET | Datasheet |
| RSVR32 | 24V/230V Refrigerant R32 Detector - Optional LED | Datasheet |
| RSVR32-MOD | 24V/230V Refrigerant R32 Detector - Optional LED - MODBUS (Suitable for use with the Merlin GDP2X & Merlin GDPX+) | Datasheet |
| RSVR32-BAC | 24V/230V Refrigerant R32 Detector - Optional LED - BACNET | Datasheet |
| RSVR134A | 24V/230V Refrigerant R134A Detector - Optional LED | Datasheet |
| RSVR134A-MOD | 24V/230V Refrigerant R134A Detector - Optional LED - MODBUS (Suitable for use with the Merlin GDP2X & Merlin GDPX+) | Datasheet |
| RSVR134A-BAC | 24V/230V Refrigerant R134A Detector - Optional LED - BACNET | Datasheet |
| RSVR1234ZE | 24V/230V Refrigerant R1234ZE Detector - Optional LED | Datasheet |
| RSVR1234ZE-MOD | 24V/230V Refrigerant R1234ZE Detector - Optional LED - MODBUS (Suitable for use with the Merlin GDP2X & Merlin GDPX+) | Datasheet |
| RSVR1234ZE-BAC | 24V/230V Refrigerant R1234ZE Detector - Optional LED - BACNET | Datasheet |
| RSVR1234YF | 24V/230V Refrigerant R1234YF Detector - Optional LED | Datasheet |
| RSVR1234YF-MOD | 24V/230V Refrigerant R1234YF Detector - Optional LED - MODBUS (Suitable for use with the Merlin GDP2X & Merlin GDPX+) | Datasheet |
| RSVR1234YF-BAC | 24V/230V Refrigerant R1234YF Detector - Optional LED - BACNET | Datasheet |
| RSVR404A | 24V/230V Refrigerant R404A Detector - Optional LED | Datasheet |
| RSVR404A-MOD | 24V/230V Refrigerant R404A Detector - Optional LED - MODBUS (Suitable for use with the Merlin GDP2X & Merlin GDPX+) | Datasheet |
| RSVR404A-BAC | 24V/230V Refrigerant R404A Detector - Optional LED - BACNET | Datasheet |
| RSVR407C | 24V/230V Refrigerant R407C Detector - Optional LED | Datasheet |
| RSVR407C-MOD | 24V/230V Refrigerant R407C Detector - Optional LED - BACNET | Datasheet |
| RSVR454A | 24V/230V Refrigerant R454A Detector - Optional LED | Datasheet |
| RSVR454A-MOD | 24V/230V Refrigerant R454A Detector - Optional LED - MODBUS (Suitable for use with the Merlin GDP2X & Merlin GDPX+) | Datasheet |
| RSVR454B | 24V/230V Refrigerant R454B Detector - Optional LED | Datasheet |
| RSVR454B-MOD | 24V/230V Refrigerant R454B Detector - Optional LED - MODBUS (Suitable for use with the Merlin GDP2X & Merlin GDPX+) | Datasheet |
| RSVR454B-BAC | 24V/230V Refrigerant R454B Detector - Optional LED - BACNET | Datasheet |
| RSVR454C | 24V/230V Refrigerant R454C Detector - Optional LED | Datasheet |
| RSVR454C-MOD | 24V/230V Refrigerant R454C Detector - Optional LED - MODBUS (Suitable for use with the Merlin GDP2X & Merlin GDPX+) | Datasheet |
| RSVR454C-BAC | 24V/230V Refrigerant R454C Detector - Optional LED - BACNET | Datasheet |
| RSVR455A | 24V/230V Refrigerant R455A Detector - Optional LED | Datasheet |
BAPI BA/RLD
