AIR DP.TRANSMITTERS
A range of of Air DP Transmitters PTH3202, Flamefast and BAPI options as below.

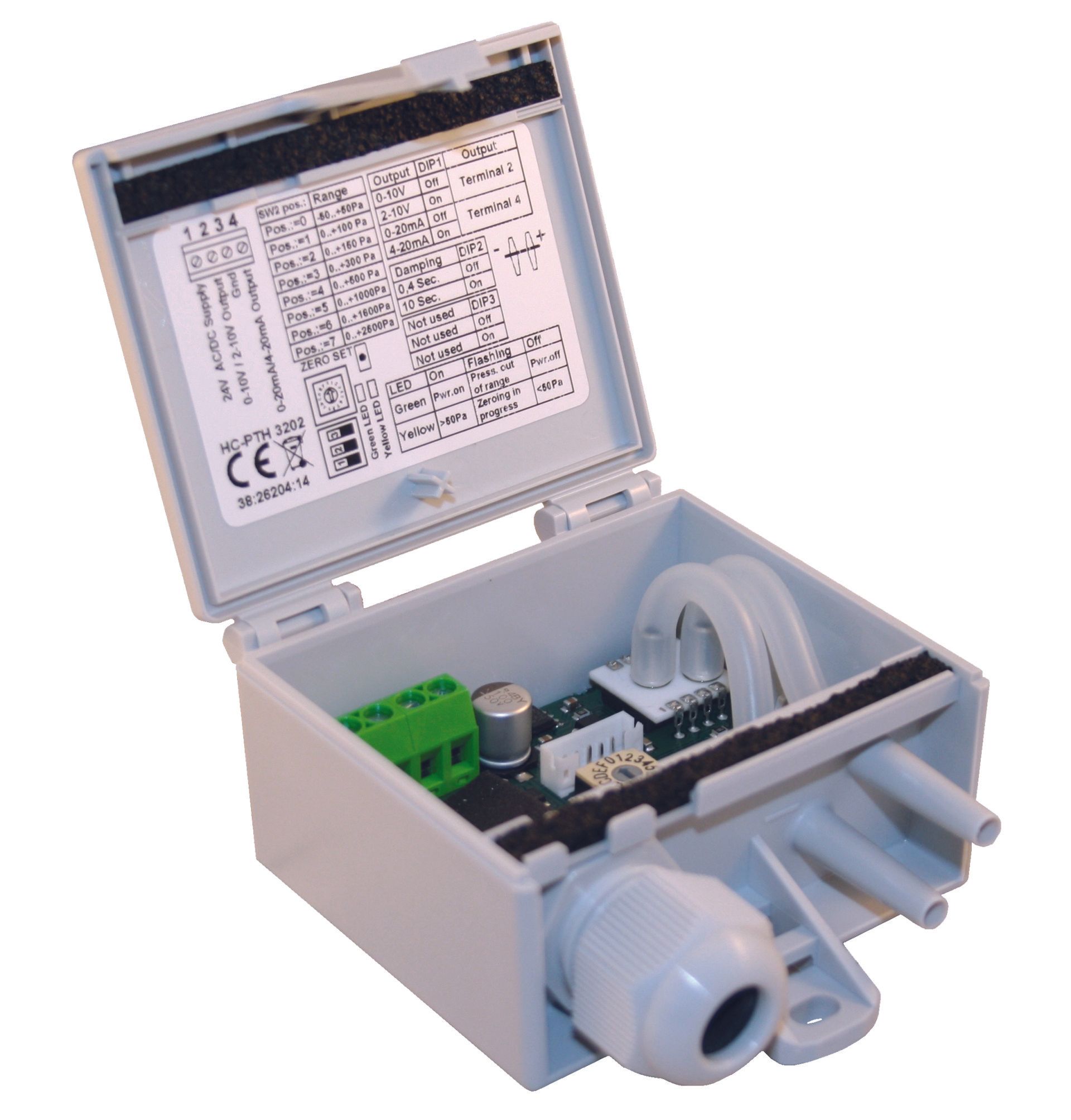

PTH is an electronic pressure transmitter designed primarily to measure total and differential air pressures in ventilation systems.
The resulting measurements are used for monitoring, control and regulation purposes via a regulator, monitoring system.
Unique switch suitable for either 0-10V or 4-20MA output in same switch also has 8 selectable ranges.
| Part Number | Description | Data Sheets |
|---|---|---|
| PTH3202 | MULTI RANGE PRESSURE TRANSMITTER | Download |
| DUCT KIT | TUBE & SPIGOTS TO SUIT PTH SERIES | |
| Ranges (mbar) | -0.5 to +0.5, 0 to 1, 0 to 1.5, 0 to 3, 0 to 5, 0 to 10, 0 to 16, 0 to 25 |

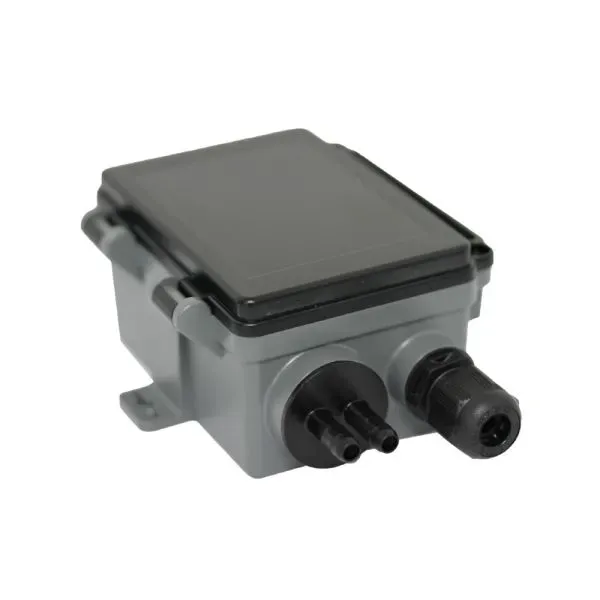

The Flamefast ADPT is an IP65 Electronic Pressure Transmitter has 10 x selectable pressure ranges and suitable for both 0-10V or 4-20MA outputs via dipswitch arrangement (ranges from -50 to 2500PA). Items supplied complete with duct kit.
| Part Number | Description | Data Sheets |
|---|---|---|
| ADPT | Multi-range Air DP Transmitter C/w Duct Kit IP65 |
BAPI IP66 Multi-range Air DP Transmitter
| Part Number | Description | Data Sheets |
|---|---|---|
| BA/ZPMB-SR-NT-D-BB | Multirange IP66 Air DP c/w Screen | Datasheet |
