HIGH SPECIFICATION THERMOSTATS
A series of high quality electromechanical immersion thermostats for use in heating, cooling & ventilation systems.
FEATURES
- Switch capacity, 24V to 240V
- Liquid filled coiled copper tube
- Contacts, dust tight micro switch with SPDT contact.
- Ambient Temp, -35°C to +65°C
SINGLE STAGE THERMOSTATS
| Part Number | Description | Rating | Differential (ºC) | Length (mm) | Data Sheets |
|---|---|---|---|---|---|
| MTIB90HL | MECHANICAL IMMERSION THERMOSTAT, 0..90°C, 1-STAGE | IP54 | 4 ±1 | 108 | Download |
| DBTV-2U | MECHANICAL IMMERSION THERMOSTAT, -30..30°C, 1-STAGE | IP65 | 1 | 108 | Download |
| DBTV-8U | MECHANICAL IMMERSION THERMOSTAT, 0..60°C, 1-STAGE | IP65 | 1 | 108 | Download |
| DBTV-17U | MECHANICAL IMMERSION THERMOSTAT, 20..90°C, 1-STAGE | IP65 | 1 | 108 | Download |
DUAL THERMOSTAT
| Part Number | Description | Rating | Differential (ºC) | Length (mm) | Data Sheets |
|---|---|---|---|---|---|

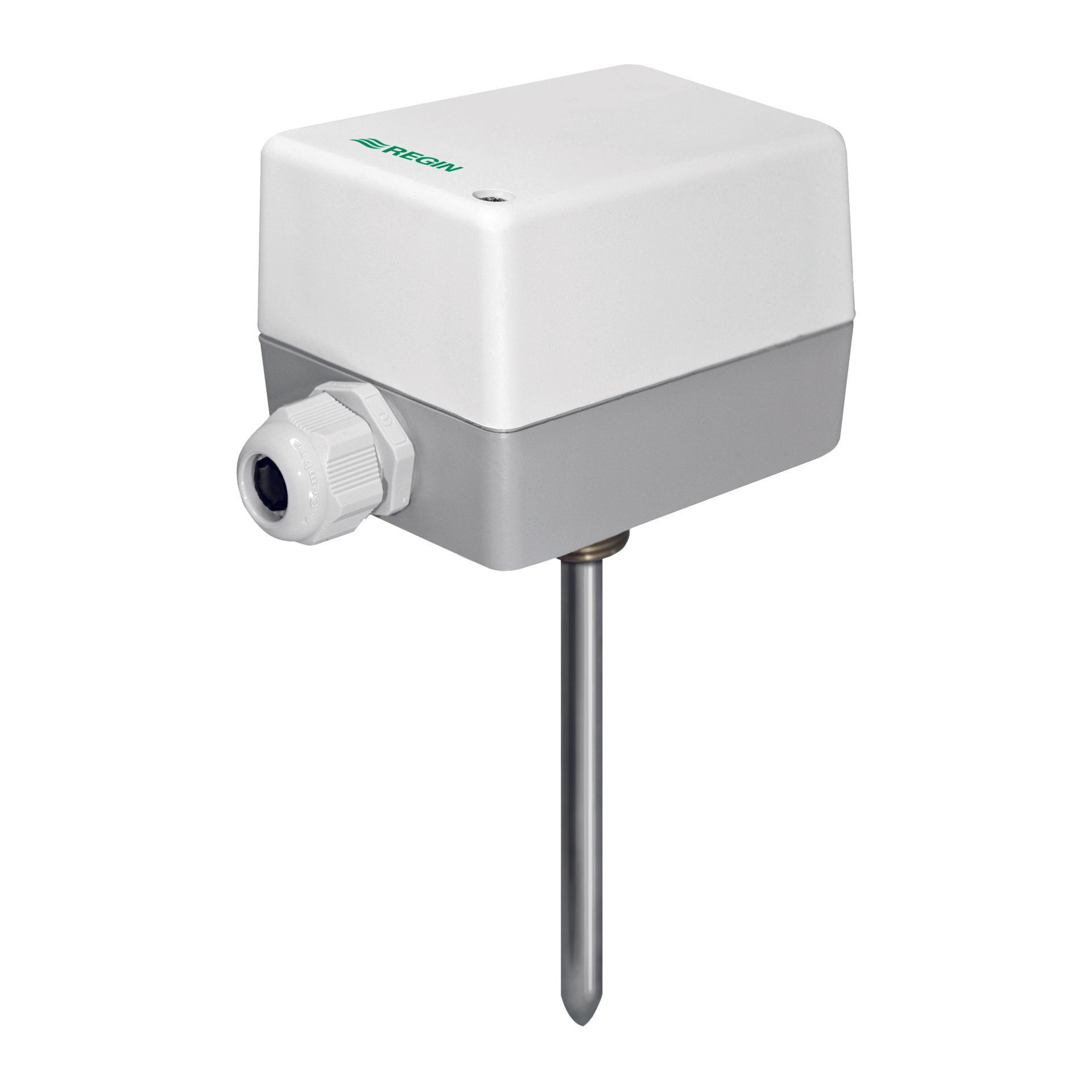

| TV09090U | MECHANICAL IMMERSION THERMOSTAT, 0..90°C, 0..90°C, 2-STAGE | IP54 | 4 ±1 | 108 | Download |
| TV090UR85* | MECHANICAL IMMERSION THERMOSTAT, 20..90°C, 65..85°C, 2-STAGE | IP54 | 4 ±1 | 108 | Download |
| TV090UR85* | 2nd Stage is manual reset | Download |
MANUAL RESET
| Part Number | Description | Rating | Differential (ºC) | Length (mm) | Data Sheets |
|---|---|---|---|---|---|
| TVR6585 | MECHANICAL IMMERSION THERMOSTAT, 65...85°C, 1-STAGE | IP54 | 20 ±5 | 108 | Download |
| TVR90110 | MECHANICAL IMMERSION THERMOSTAT, 90...110°C, 1-STAGE | IP54 | 20 ±5 | 108 | Download |

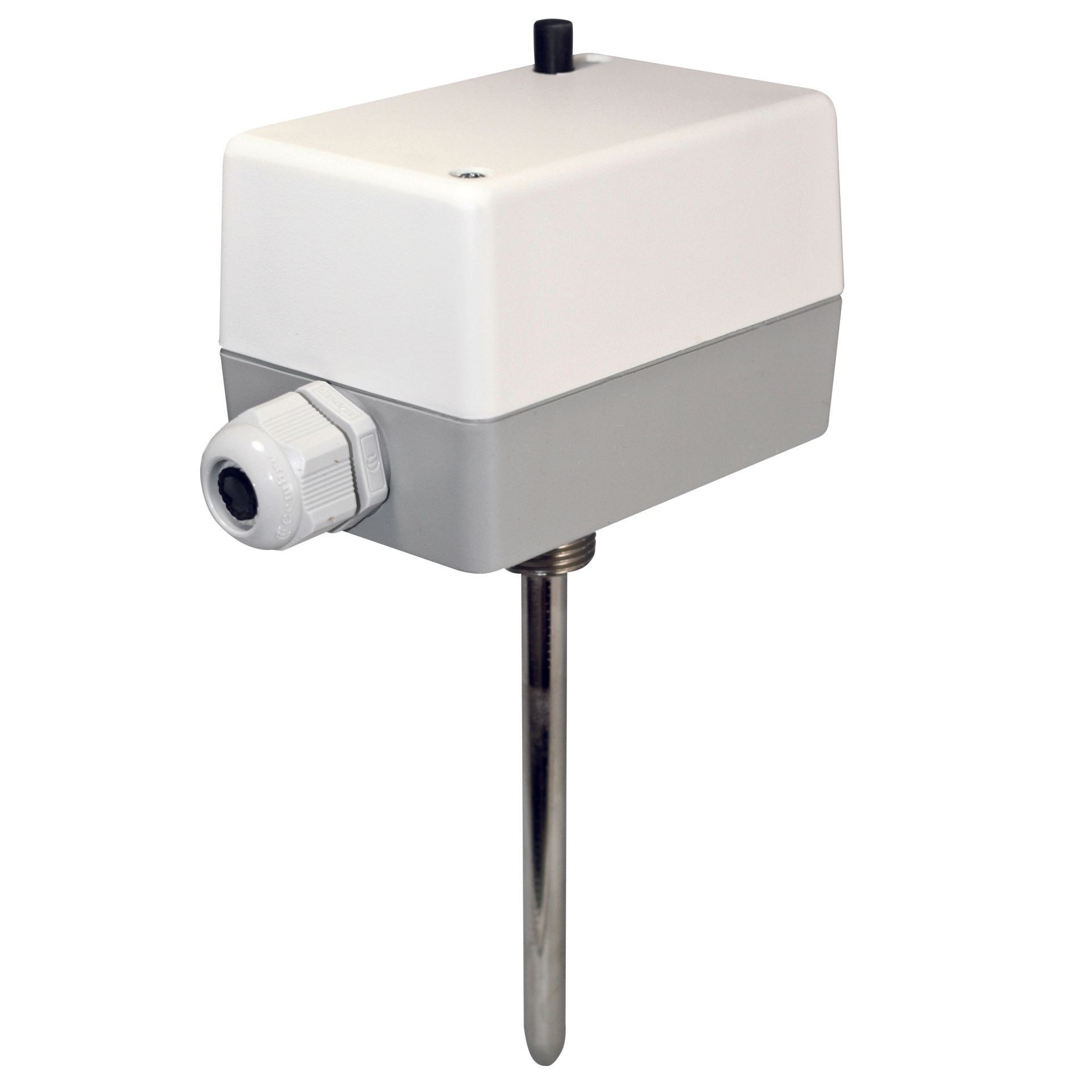

| DBTV-18U | MECHANICAL IMMERSION THERMOSTAT, 20...90°C, 1-STAGE | IP65 | N/A | 108 | Download |
| All thermostats supplied with Brass Pocket |
STAINLESS STEEL POCKET OPTIONS
| Part Number | Description |
|---|---|
| DBZ-31/14 | STAINLESS STEEL POCKETS FOR MTIB90HL, TVR90110 & TVR6585 |
| DBZ-41/14 | STAINLESS STEEL POCKETS FOR DUAL THERMOSTATS |
| DBZ-17/14 | STAINLESS STEEL POCKETS FOR DBTV-2U, DBTV-8U, DBTV-17U, DBTV-18U |
