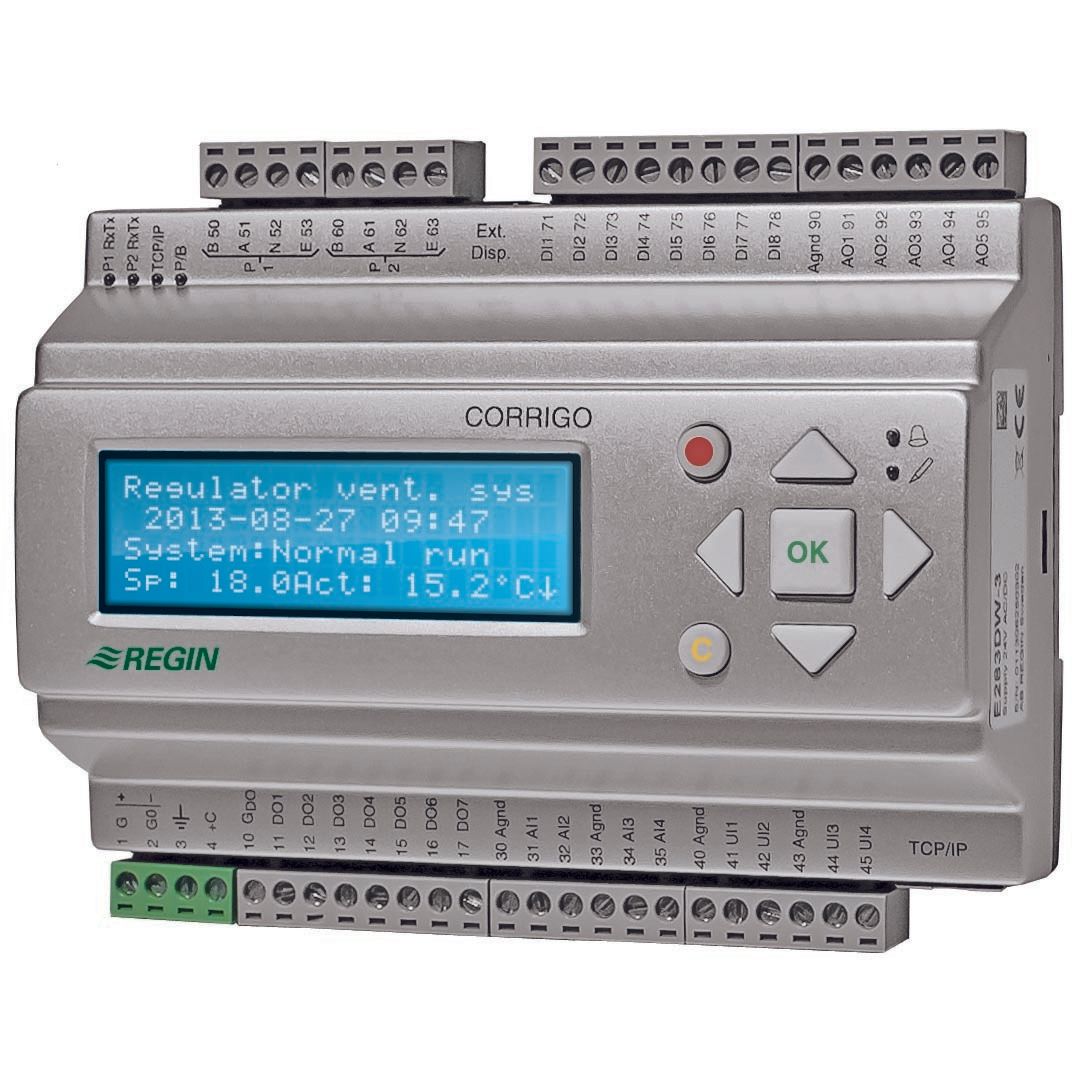

CORRIGO CONTROLLERS
The Corrigo 5, Ventilation controller with a brand new built in web server, HTML5.
FEATURES
- 24v configurable controllers for ventilation
- Ventilation: all types of AHU configurations
- Available in 15, 20 (Vido hardware) or 28 I/O
- Communication as standard: Modbus TCP/IP or RS485, BACnet/IP or BACnet MS/TP option, M-Bus
- Ready for Cloud service for easy remote access
- Din rail or fascia mountable
- Selection of external displays
- Download and easily configure the controller via the free software Application tool. Same software for all Configurable controller from Regin. Corrigo 5, Exigo, and Regio
- Also available without display (contact office for requirements).
- NEW! Built in HTML5 web server
| Part Number | Description | Data Sheets |
|---|---|---|
| VCA152DW-4 | CORRIGO ARDO 15 I/O'S, DISPLAY, 1 RS485, 1 WEB | Download |
| VCA152W-4 | CORRIGO ARDO 15 I/O'S, 1 RS485, 1 WEB | Download |
| VCA283DW-4 | CORRIGO ARDO 28 I/O'S, DISPLAY, 2 RS485, 1 TCP/IP, WEB SERVER | Download |
| VCA283W-4 | CORRIGO ARDO 28 I/O'S, 2 RS485, 1 TCP/IP, WEB SERVER | Download |
| VCV203DWM-2 | CORRIGO VIDO 20 I/O:S, DISPLAY, 1 RS485, 1 TCP/IP, 1 M-BUS | Download |
