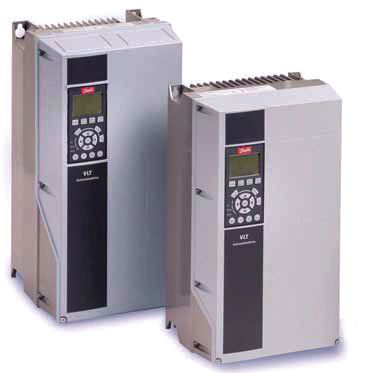

DANFOSS VLT® HVAC DRIVES FC102
The VLT® HVAC Drive is designed to bring optimized process control to all heating, ventilation and air conditioning (HVAC) applications.
Easy to use and with built-in intelligence, the drive is fast and cost-effective to commission, and it has the capacity to control multiple high-efficiency permanent magnet motors in parallel.
It features a wide range of functions specifically developed for use with, for example, pumps, fans and compressors to save energy, meet environmental regulations and reduce costs in modern buildings.
FEATURES
- IP20, IP55 & IP66
- H3 Filter (H2 Filter option available on request)
- Modbus & BACnet as standard

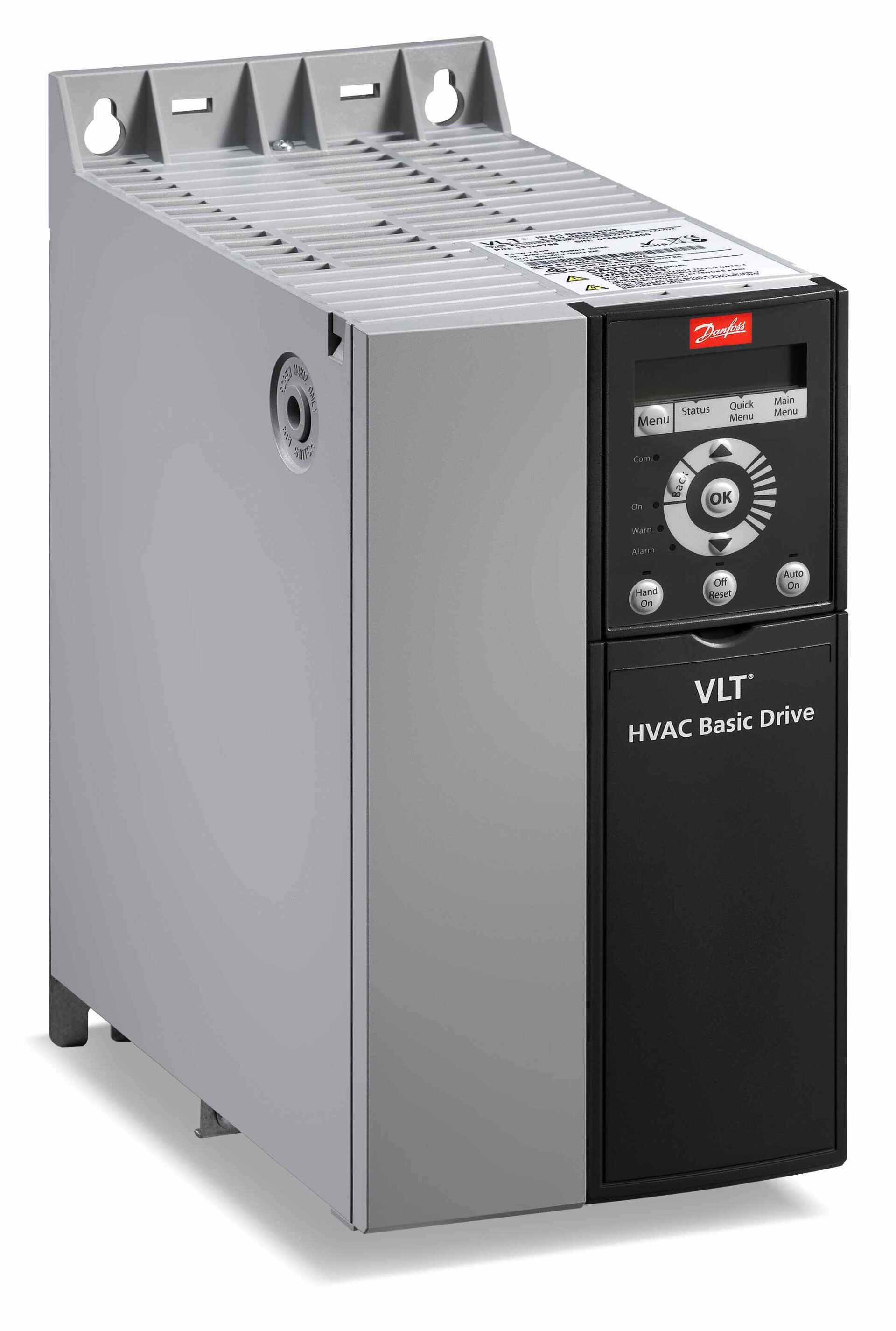

IP20
| Part Number | Rating (kW) | Data Sheets |
|---|---|---|
| 131B5468 | 1.1 | Download |
| 131B5469 | 1.5 | Download |
| 131B5470 | 2.2 | Download |
| 131B5471 | 3 | Download |
| 131B5472 | 4 | Download |
| 131B5473 | 5.5 | Download |
| 131B5474 | 7.5 | Download |
| 131F8307 | 11 | Download |
| 131F8308 | 15 | Download |
| 131G0433 | 18.5 | Download |
| 131F9921 | 22 | Download |
| 131F9926 | 30 | Download |
| 131F9931 | 37 | Download |
| 131F9936 | 45 | Download |
IP55
| Part Number | Rating (kW) | Data Sheets |
|---|---|---|
| 131N9572 | 1.1 | Download |
| 131U0963 | 1.5 | Download |
| 131U0964 | 2.2 | Download |
| 131U0965 | 3 | Download |
| 131U0966 | 4 | Download |
| 131L9238 | 5.5 | Download |
| 131L9239 | 7.5 | Download |
| 131L9240 | 11 | Download |
| 131L9241 | 15 | Download |
| 131L9242 | 18.5 | Download |
| 131L9243 | 22 | Download |
| 131L9244 | 30 | Download |
| 131B6976 | 37 | Download |
| 131B7017 | 45 | Download |
IP66
| Part Number | Rating (kW) | Data Sheets |
|---|---|---|
| 131Z2198 | 1.1 | Download |
| 131Z2199 | 1.5 | Download |
| 131Z2200 | 2.2 | Download |
| 131Z2201 | 3 | Download |
| 131Z2202 | 4 | Download |
| 131B9300 | 5.5 | Download |
| 131B9307 | 7.5 | Download |
| 131B9308 | 11 | Download |
| 131B9317 | 15 | Download |
| 131B9318 | 18.5 | Download |
| 131B9320 | 22 | Download |
| 131B9323 | 30 | Download |
| 131F2566 | 37 | Download |
| 131F1202 | 45 | Download |

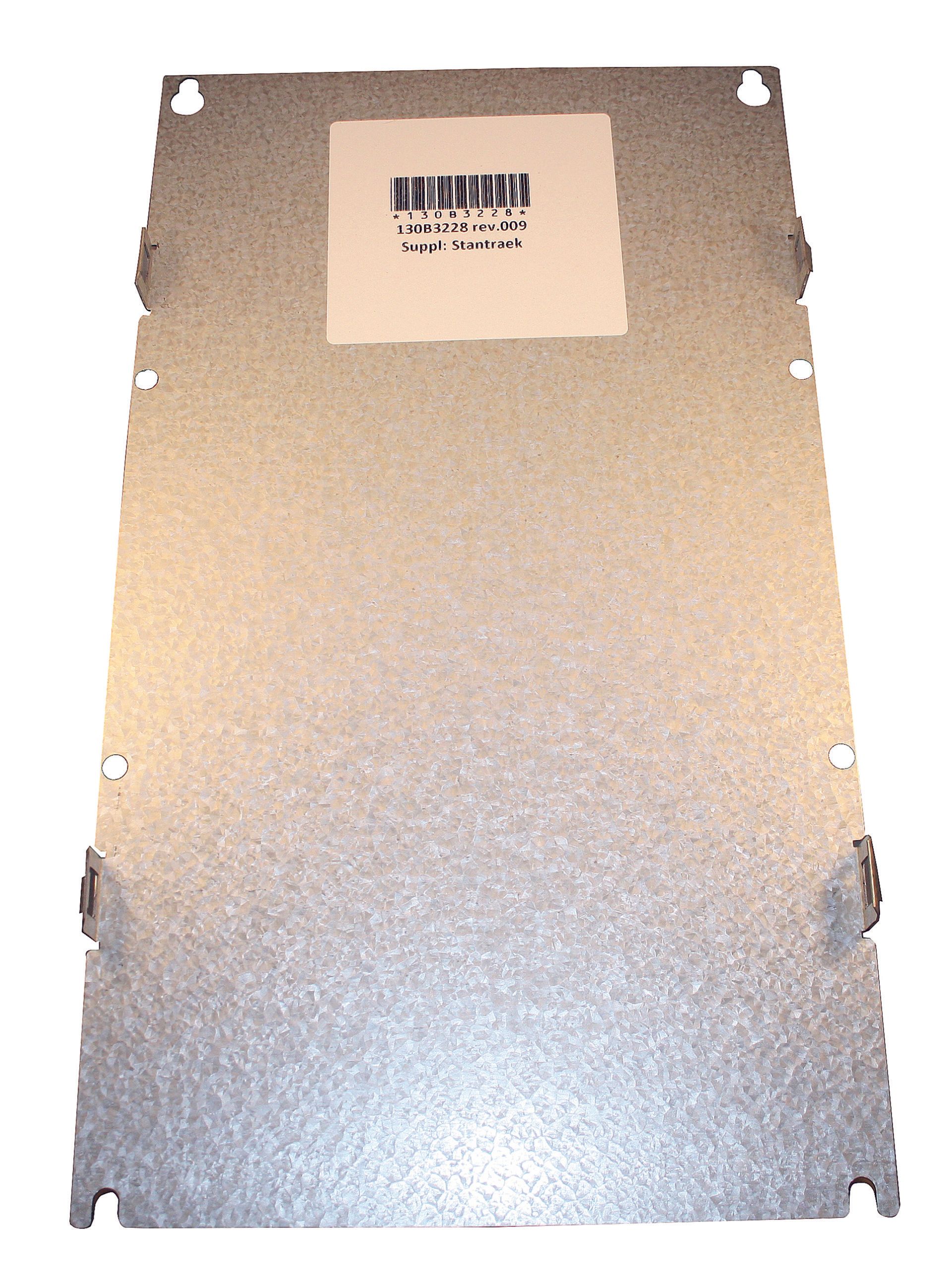

Back Plates
| Part Number | To Suit Drive |
|---|---|
| 130B3150 | 1.1-4KW IP55 |
| 130B1098 | 5.5-7.5KW IP55 |
| 130B3383 | 11-18.5kW IP20/IP55 |
| 130B3397 | 22-30kW IP20/IP55 |
| 130B3910 | 37-55kW IP20/IP55 |
