The AX-RHT-3 range of RH&T Transmitters are designed for high accuracy relative humidity and temperature measurement, having selectable analogue output of both values. These units are extremely reliable and have excellent stability and a quick response time, the accuracy range is 2 or 3 %
SPECIFICATION
RH Accuracy: 2 or 3% (between 5% and 95% RH)
Temperature Accuracy: + / - 0.1 °C
Sensor Type: Capacitive
Sensor Protection: PTFE Filters
Power Supply:
For 0-10V DC - 24VAC / DC +/-15%
For 4-20MA - 24VDC +/-15%
Output: 4-20MA or 0-10VDC or 0-5VDC (selectable)
Output Ranges:
RH: 0-95%
Temp:
S: -10°c to 40°c
D: 0°c to 70°c
O: -20°c to 50°c
Ambient Temp: 0-50°c, 0-95% RH
Protection: S - IP23
Part Number | Description | Data Sheets |
---|---|---|
AX-RHT-S | ROOM VERSION 2.5% ACC | Download |
AX-RHT-D3 | DUCT VERSION 3% ACC | Download |
AX-RHT-O3 | OUTSIDE VERSION 3% ACC | Download |

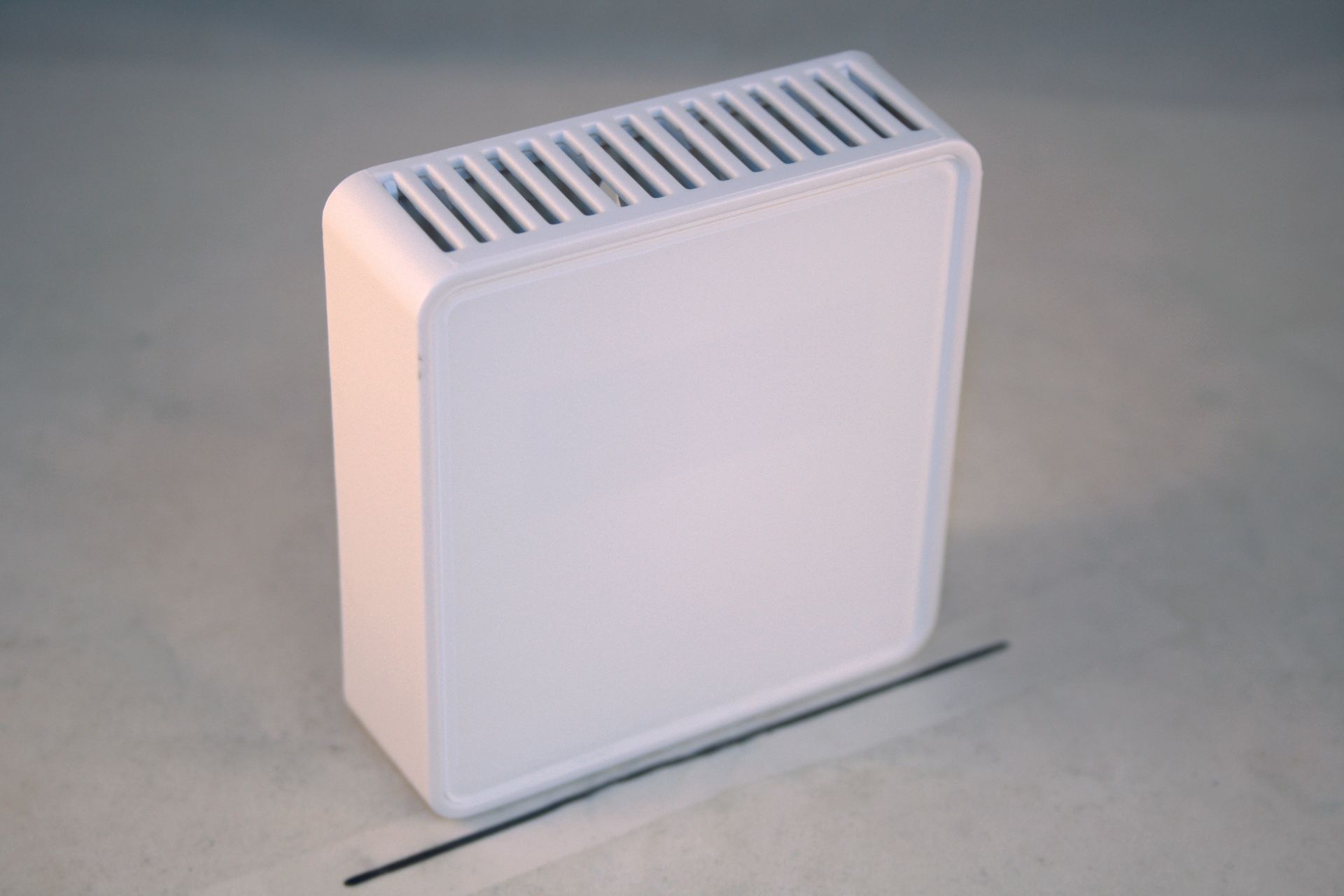

AX-RHT-S2 | ROOM VERSION 2% ACC | Download |
AX-RHT-D2 | DUCT VERSION 2% ACC | Download |
AX-RHT-O2 | OUTSIDE VERSION 2% ACC | Download |

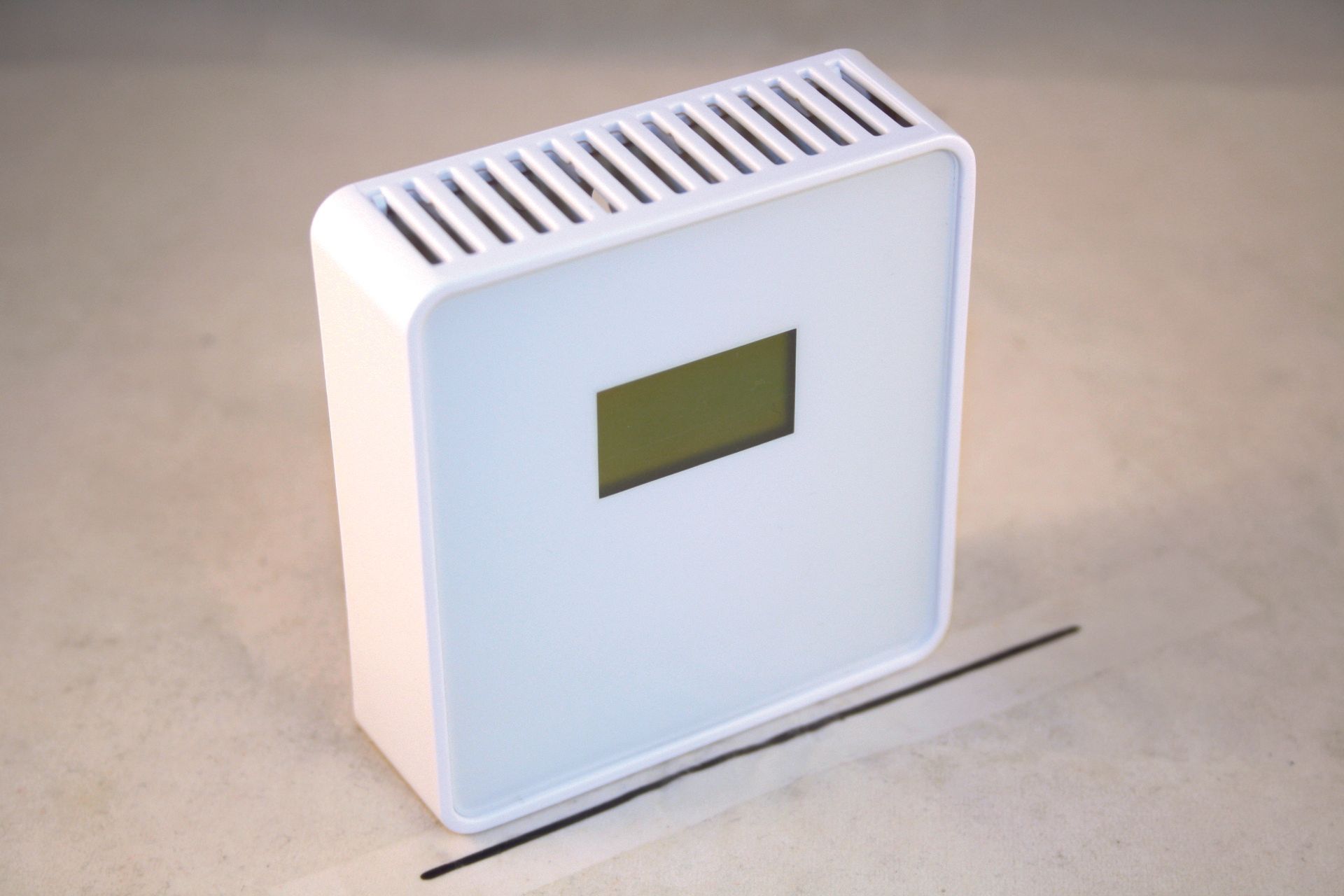

AX-RHT-SD | ROOM VERSION 2.5% ACC C/W DISPLAY | Download |
THERMISTOR TYPE VERSION ALSO AVAILABLE ON REQUEST
