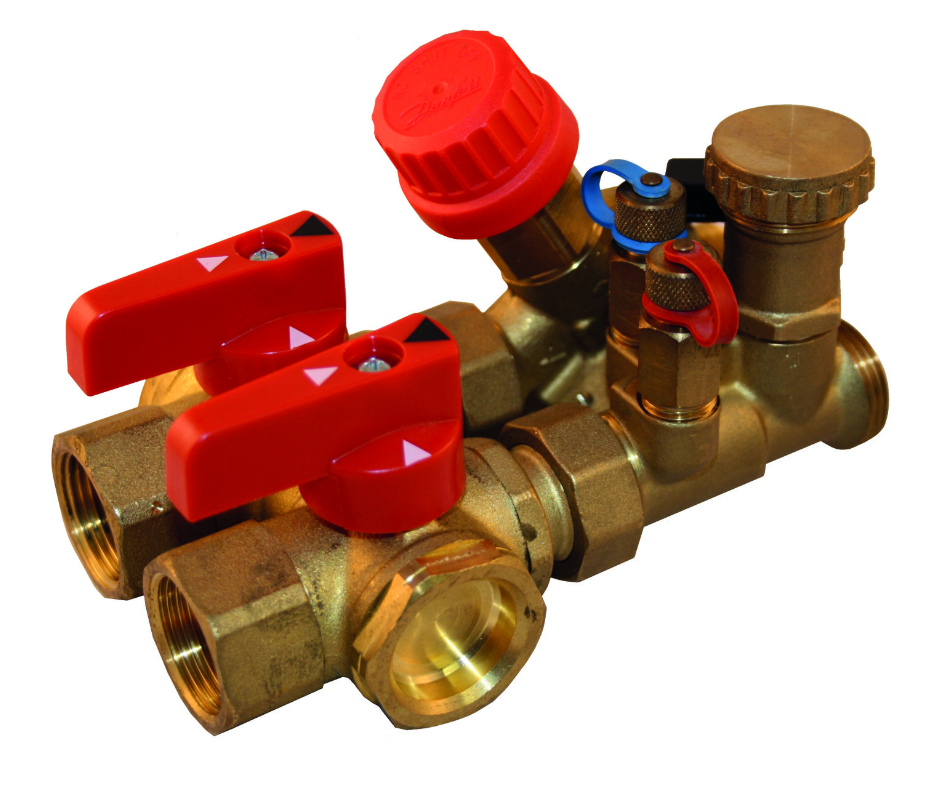

MINIFLUSH PRE-FABRICATED FLUSHING BYPASS ASSEMBLY C/W DANFOSS ABQM

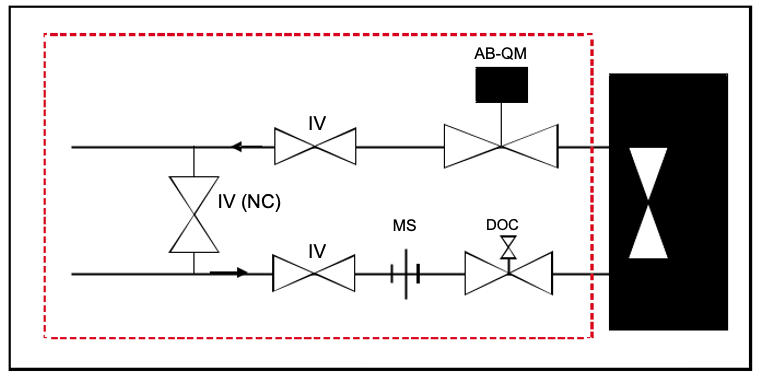

Miniflush 40 is a pre-fabricated, flushing bypass arrangement for balance, control, isolatin, and operation of terminal devices. It is designed for use with fan coil units, chilled beams, and other terminal devices, where flow is controlled via a pressure independent control valve, and isolation, drain, flushing bypass, and flow measurement is required.

FEATURES

• A compact, pre-fabricated design.
• Factory pressure tested assembly
• Flexible product which can be tailored to suit exact requiremnets for specific applications, eg additional drain. 4 port valve etc.
• Each assembly is labelled with FCU location and Miniflush 40 instructions.
• High flow DN15 option for direct connection to CHW terminals with flows up to 0.315 l/s
• Low flow option for LTHW flow rates down to 0.008 l/s
• Left and right handed versions to prevent clashes within the fan coil.
• A wide range of connection options, including including BSP, compression, and solder connections to the coil.

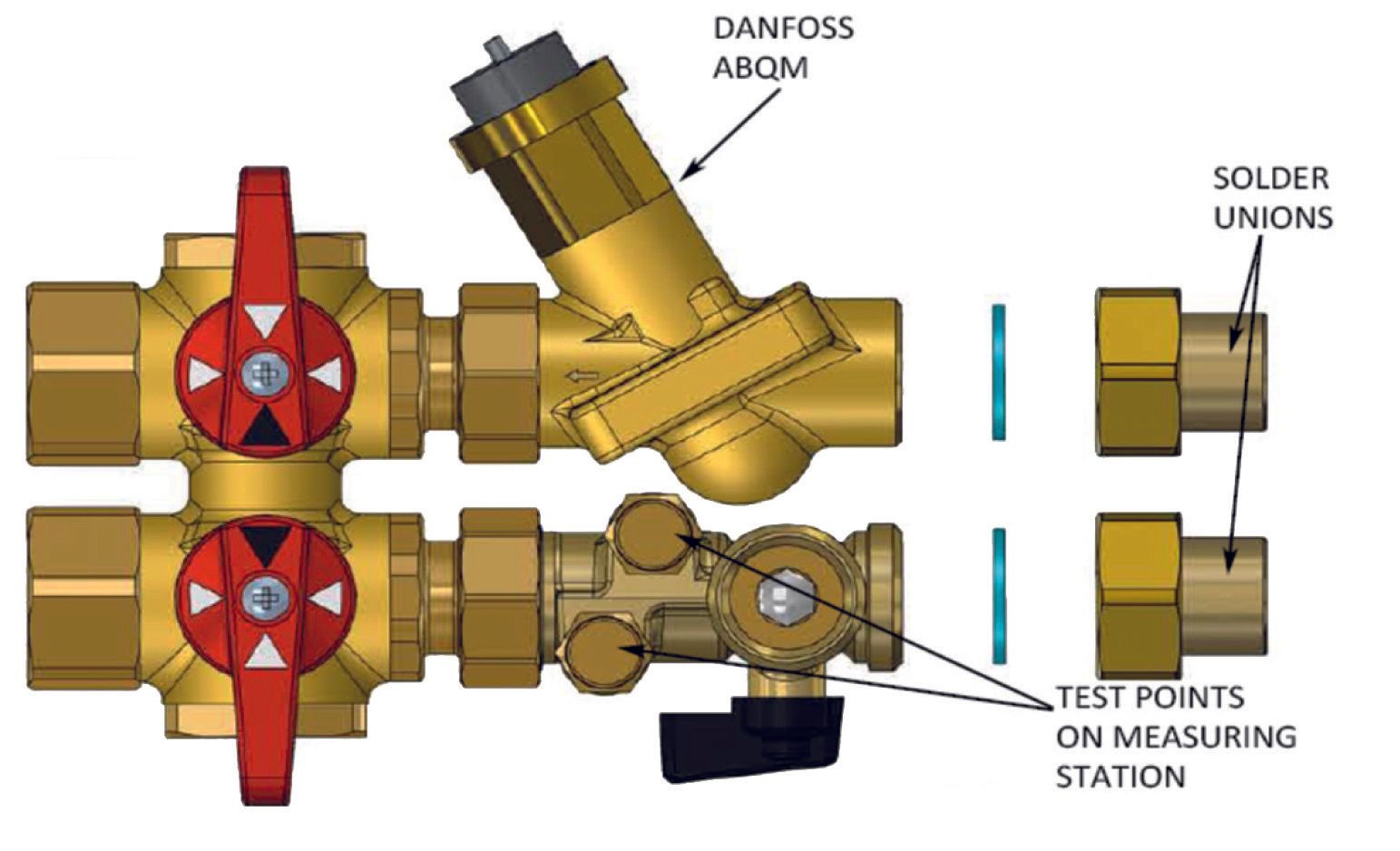

• Danfoss AB-QM type pressure independent control valve for balance at full orpartial loads.
• A comprehensive compatible range of actuators to enable it to be connected to a building management system or other controller.
• Flow mounted drain for flushing and quick drain-downs
• Flow measurement functon in all sizes.
