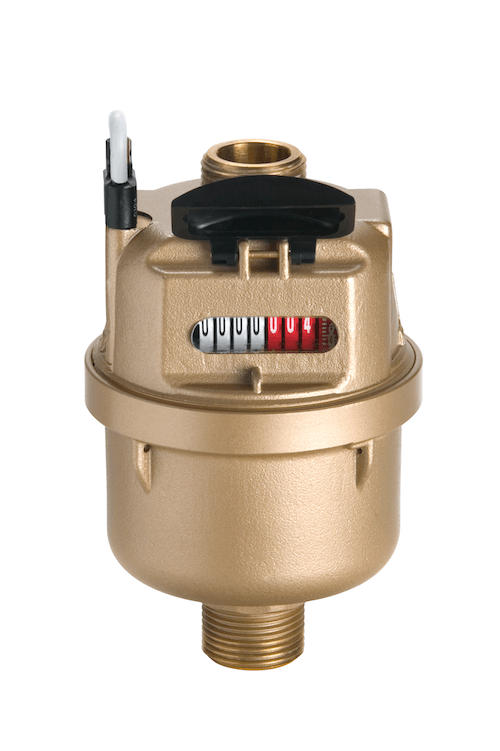

ELSTER KENT V100 WATER METERS

The Elster V100 is a robust water meter designed for the measurement of cold potable water that offers accuracy, long maintenance-free life and tamper resistance. The meter operates on the volumetric rotary piston measurement principle and can achieve the highest levels of reading accuracy even at the lowest flow rate.



FEATURES

Volumetric Positive Displacement type

WRAS & MID approved

Suitable for installation in any position with no loss of accuracy

Suitable for cold water up to 30°C

Pulse output (to be ordered separately)

ELSTER KENT V100 WATER METERS
Part Number Size (mm) 2% Accuracy Between Data Sheets
V100-015 15 25 l/hr - 15 l/hr Download
V100-020 20 40 l/hr - 4 m3/hr Download
V100-025 25 63 l/hr - 6.3 m3/hr Download
V100-032 32 100 l/hr - 10 m3/hr Download
V100-040 40 160 l/hr - 16m3/hr Download
Part Number Type Output 15-20mm Output 25-40mm
T110-S135 Reed Pulse 1 PULSE PER 0.5 LITRES 1 PULSE PER 5 LITRES
