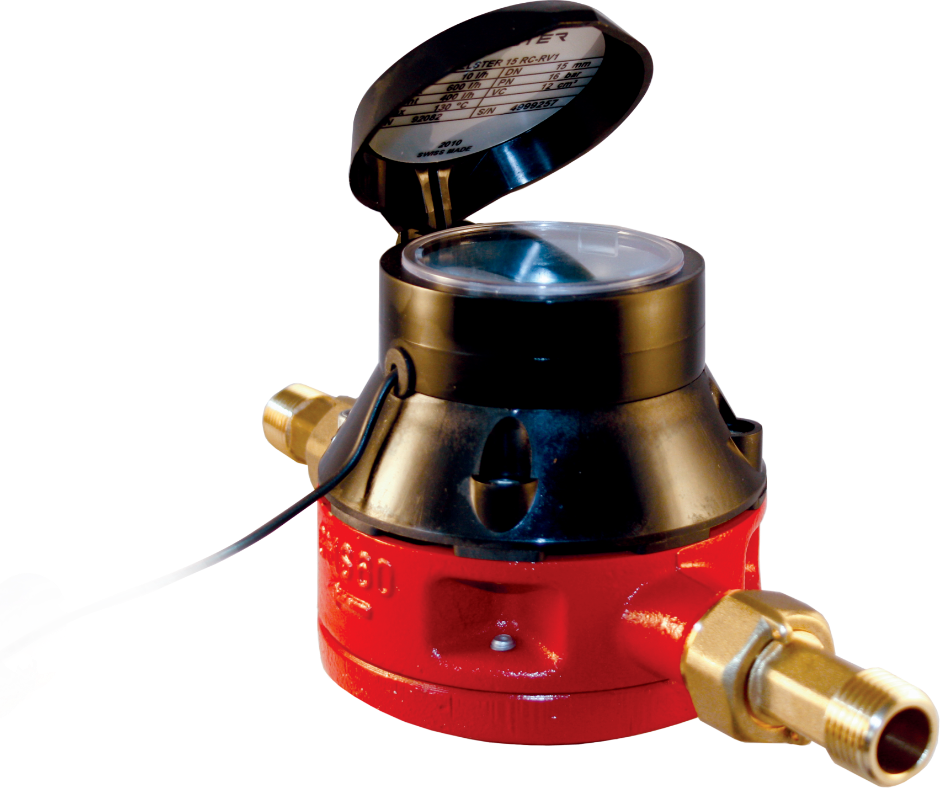

AQUA METRO OIL METERS C/W PULSED OUTPUT

The Contoil Aquametro Range range of fuel oil meters.



Applications for flow measurement for mineral oils and heating or propellant fuels for Burners etc.

These Oil Meters provide an accurate, reliable and economical way of obtaining all the information a user needs to control oil usage and energy costs.



FEATURES

  • Wide range of sizes from 4mm to 50mm
  • Accuracy of ±1% of reading with a repeatability of ±0.2%
  • Available with screwed and flanged end connections
  • Pulse output units available for interface with management systems and remote readouts
  • Can be installed in a horizontal, vertical or inclined position
AQUA METRO OIL METERS C/W PULSED OUTPUT
Part Number Size (mm) Flowrate (l/hr) Data Sheets
FB OIL METER 4 4 1-80 Download
FB OIL METER 8 8 4-200 Download
FB OIL METER 15 15 15-600 Download
FB OIL METER 20 20 30-1500 Download
FB OIL METER 25 25 75-3000 Download
FB OIL METER 40 40 225-9000 Download
FB OIL METER 50 50 750-30000 Download
